Engineered support solutions manufactured by Ashish International for Prabhu Flow Tech, delivering high mechanical load distribution, vibration damping, and superior corrosion resistance across industrial piping, HVAC, electrical, and pneumatic installations.
Key Support Advantages
Certified heavy-duty mounting & strut channel framing — Request custom engineering drawings.
Manufactured to DIN and ISO standards for commercial, industrial, and infrastructure mounting setups.

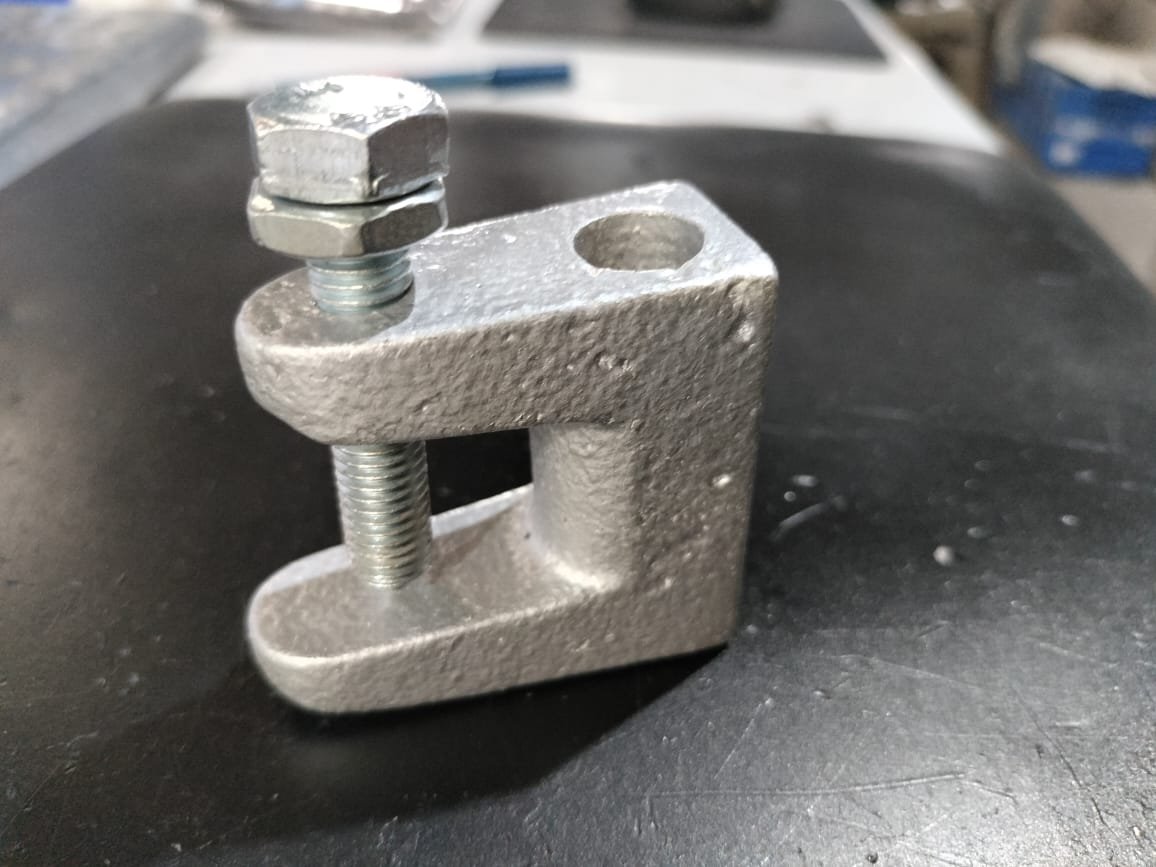

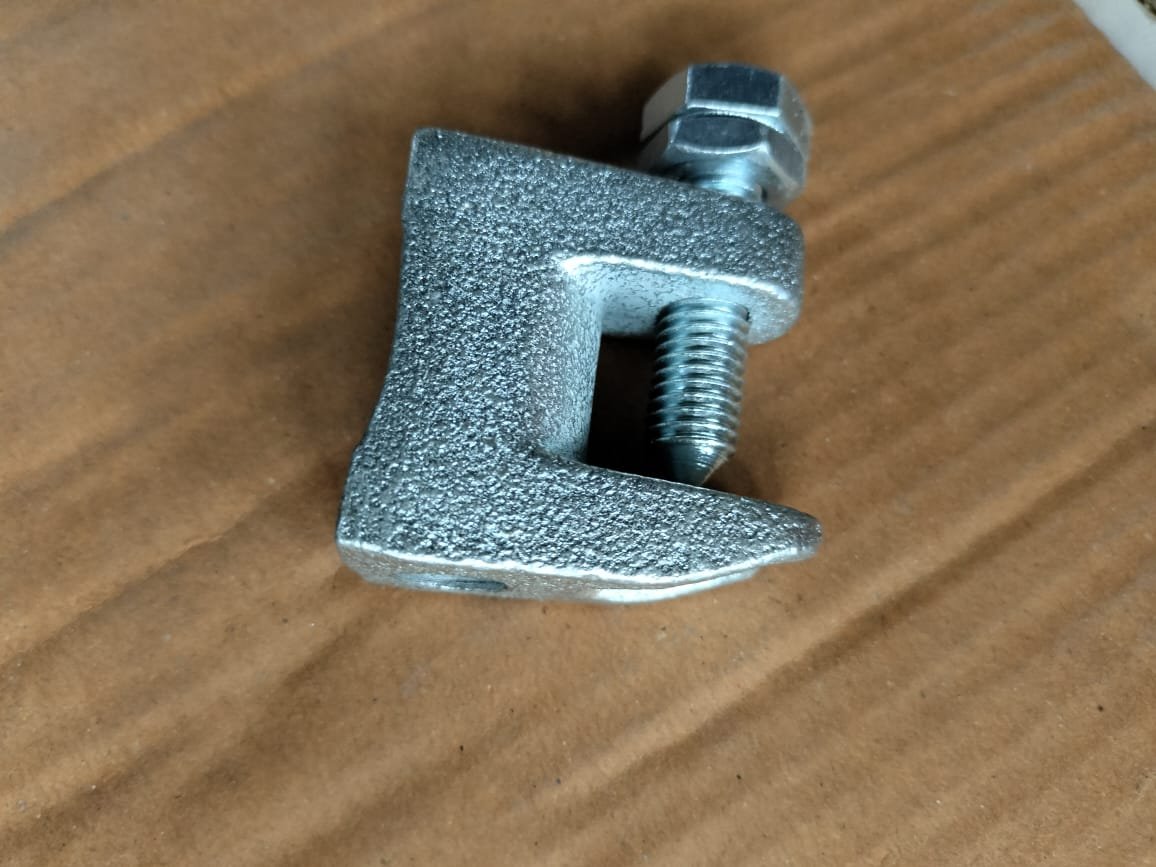

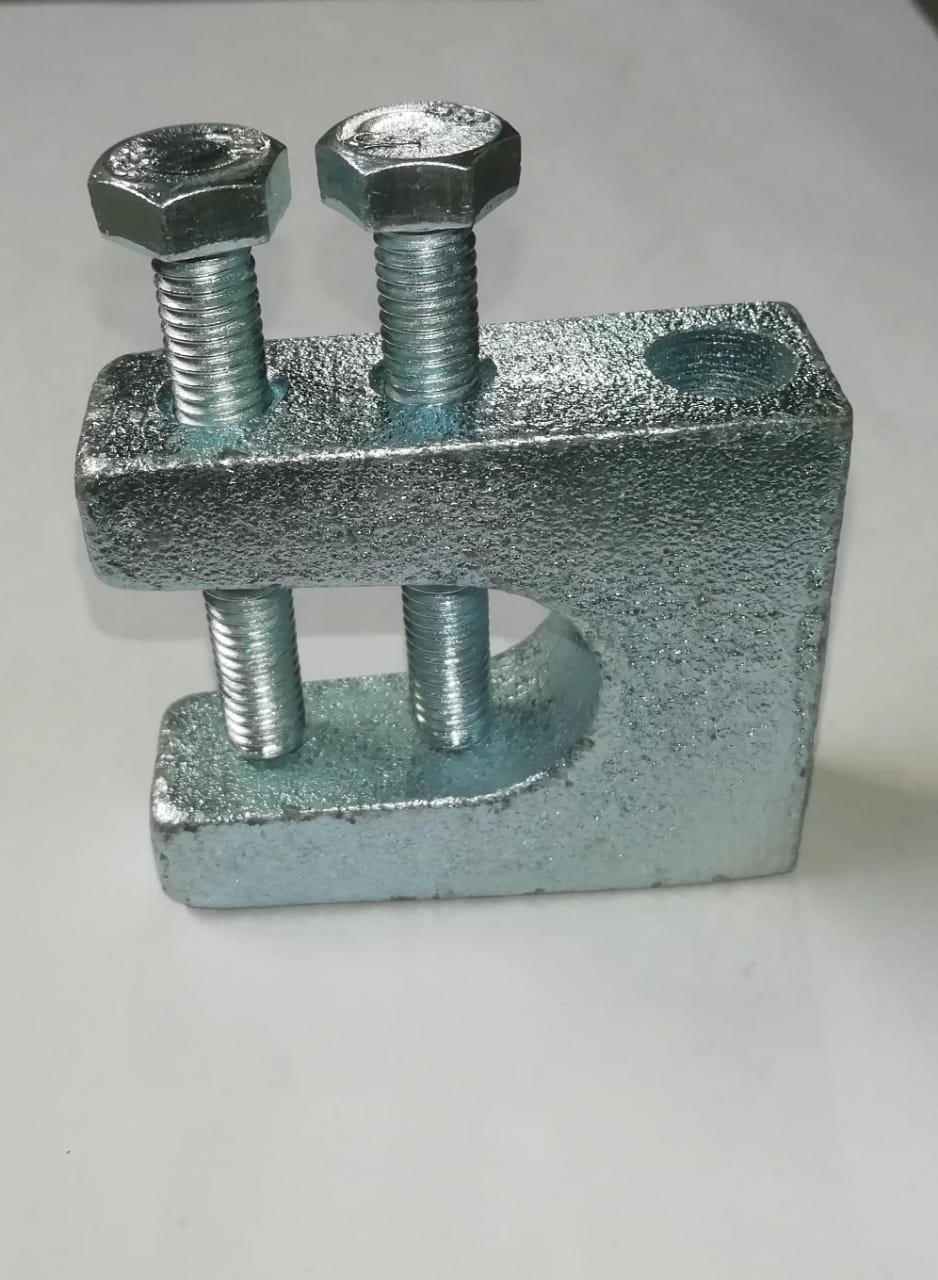

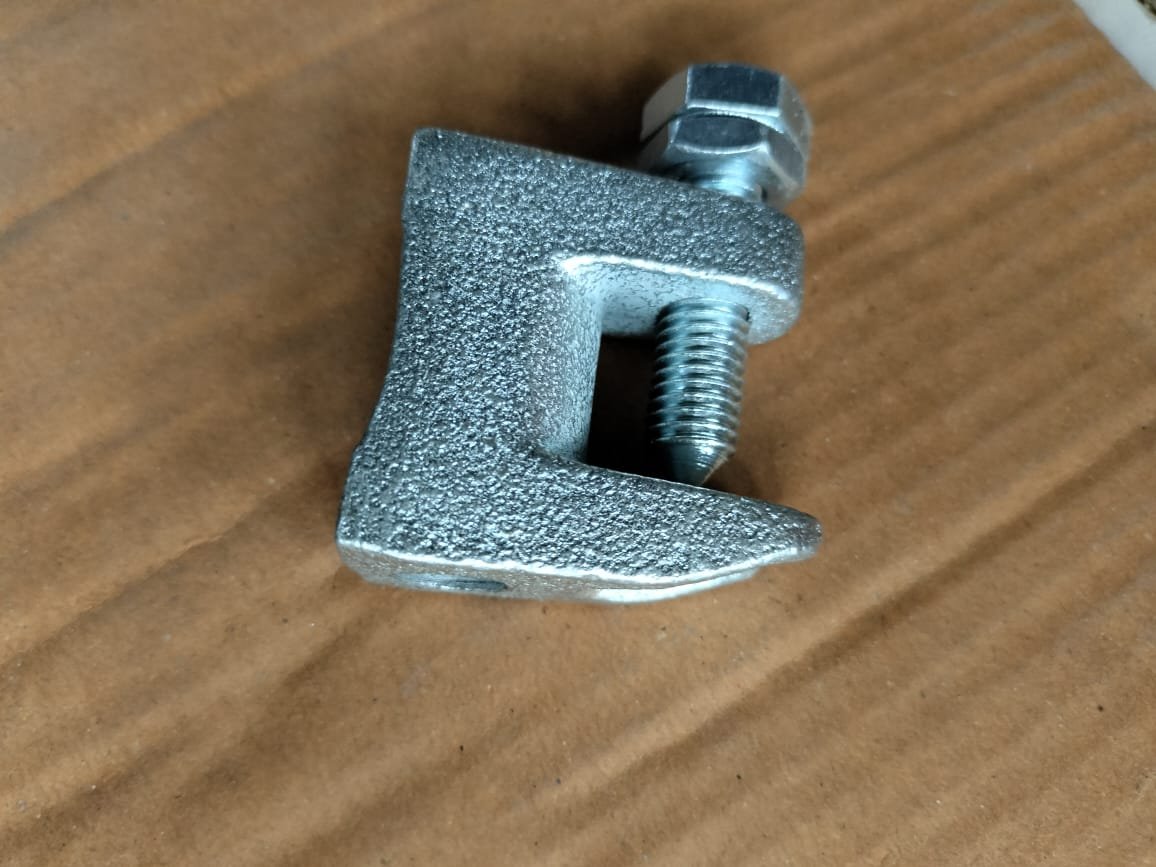

Heavy-duty structural steel beam clamps for flange attachment without drilling or welding.
Hot Dip Galv / Zinc Plated

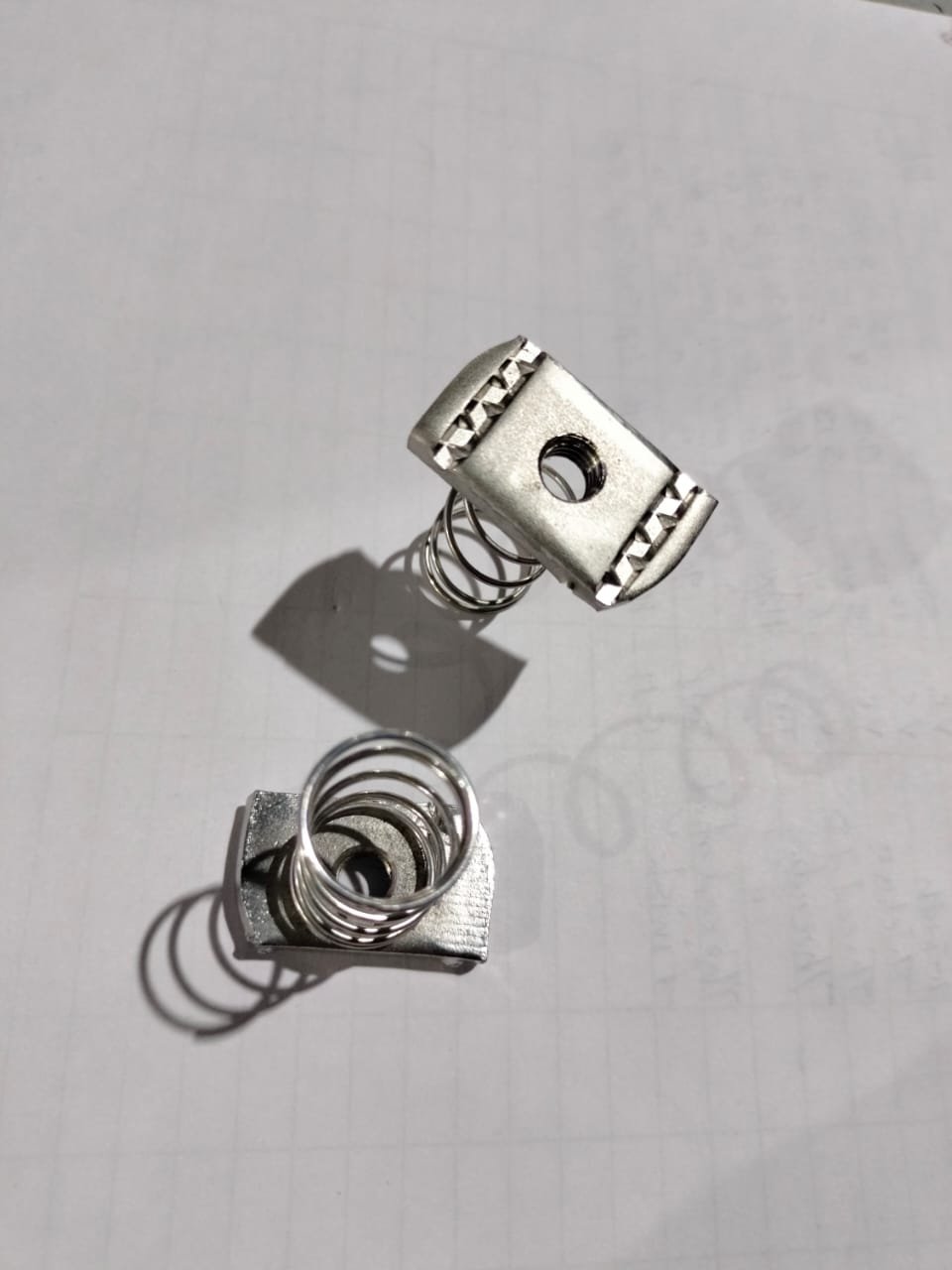

Self-holding threaded channel nuts with spring coils for rapid positioning inside strut channels.
HDG / Zinc / SS304 / SS316
Continuous slotted & plain metal framing channels for modular piping, electrical & HVAC supports.
Pre-Galv / HDG / Powder Coated
Heavy wall-mount bracket arms designed for single or multi-tier overhead pipe runs.
HDG / Zinc / Powder Coated
Two-piece cushion clamps and heavy-duty pipe straps with rubber insulation lining.
Rubber Lined / Zinc / HDG
Custom welded structural steel fittings, L-brackets, T-plates, and base gusset plates.
Custom Fabricated SteelPrecision cold-formed steel strut channels and rubber-lined cushion clamps.
| Product Type | Profile Dimension | Wall Thickness | Standard Length | Available Finishes |
|---|---|---|---|---|
| Strut Channel (Plain) | 41mm x 41mm | 1.5mm / 2.0mm / 2.5mm | 3 Meters / 6 Meters | Pre-Galv, HDG, Zinc, Powder Coated |
| Strut Channel (Slotted) | 41mm x 41mm | 1.5mm / 2.0mm / 2.5mm | 3 Meters / 6 Meters | Pre-Galv, HDG, Zinc, Powder Coated |
| Shallow Channel (Plain) | 41mm x 21mm | 1.5mm / 2.0mm | 3 Meters / 6 Meters | Pre-Galv, HDG, Zinc, SS304 |
| Back-to-Back Channel | 41mm x 82mm | 2.0mm / 2.5mm | 3 Meters / 6 Meters | Hot-Dip Galvanized, Stainless Steel |
| Rubber Lined Pipe Clamp | DN15 (1/2") to DN300 (12") | 2.0mm - 4.0mm Steel | With EPDM Lining | Electro-Zinc Plated, HDG |
Structural framing connectors engineered for secure wall, ceiling, and floor mounting.

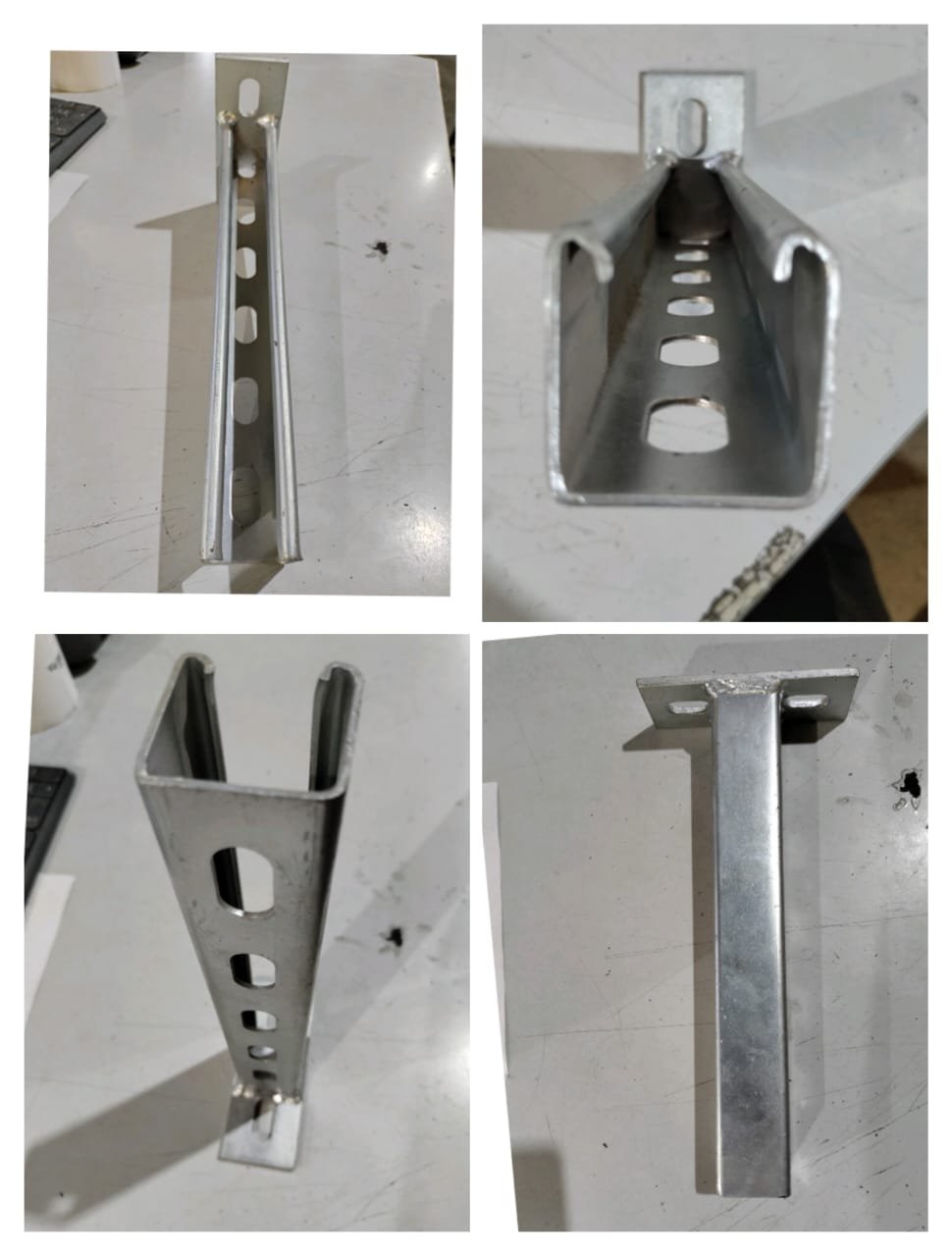

Heavy-duty welded base plate arms for wall mounting single or multi-tier overhead pipe runs.

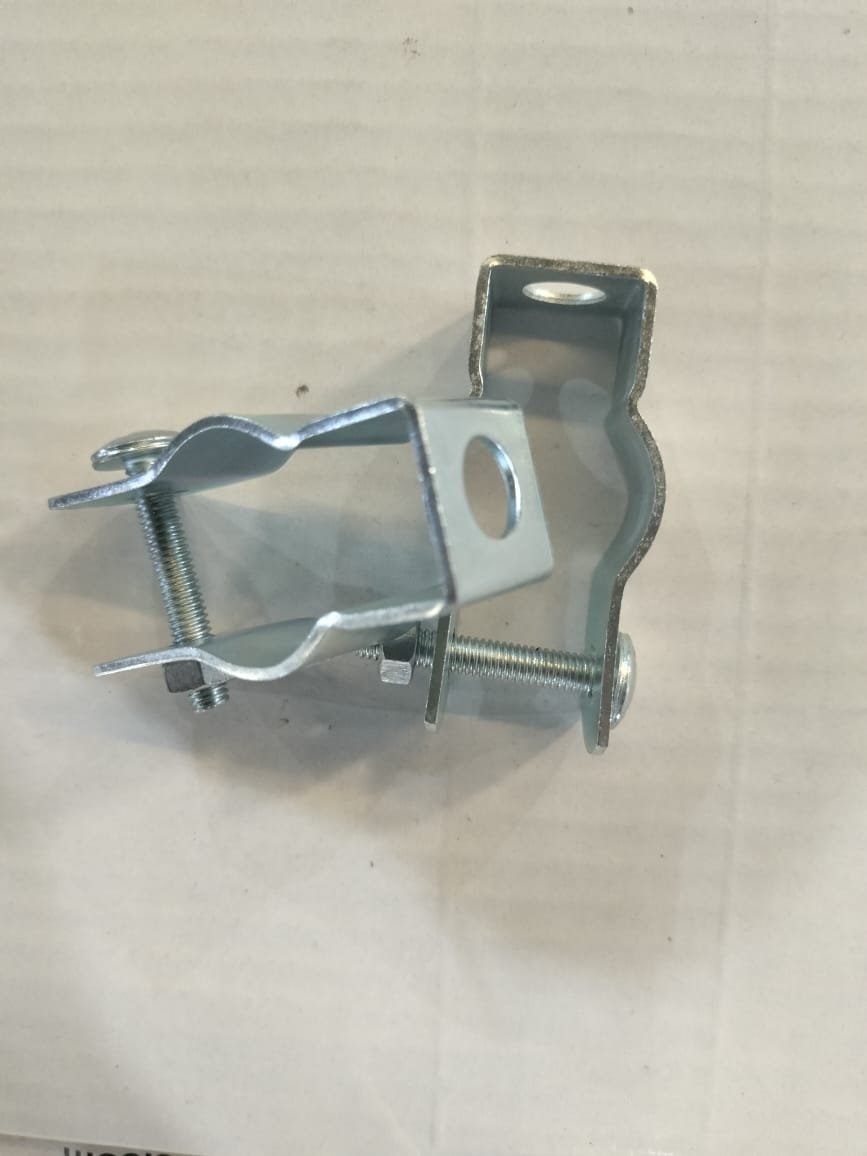

Vertical post base plates designed for 41x41mm and 41x82mm back-to-back strut channels.
High-tensile fasteners and channel locking hardware.
| Item Name | Thread Sizes | Material / Grade | Application |
|---|---|---|---|
| Spring Channel Nut | M6, M8, M10, M12, M16 | Class 8.8 Steel / SS316 | Inserts inside strut channel with spring holding coil. |
| Threaded Bar / Stud Rods | M6 to M24 (1m / 2m / 3m) | Grade 4.8 / 8.8 / SS304 | Overhead rod suspension for pipe hangers & trapeze. |
| Casting Beam Clamp | M8 / M10 / M12 Bolt Size | Ductile Cast Iron / Steel | Attaches to I-beam flanges without welding. |
| Drop-In Anchors | M6, M8, M10, M12, M16 | Zinc Plated Steel | Internal thread concrete expansion anchors. |
Engineered coating options ensuring long-term resistance against rust and environmental corrosion.
Precision manufactured by Ashish International with state-of-the-art metal fabrication and protective multi-layer finishes.
Available in Hot-Dip Galvanized (HDG), Pre-Galvanized, Electro-Zinc Plated, Stainless Steel (SS304/SS316), and Powder Coated finishes for extreme weather & industrial plant exposure.
Engineered from heavy-gauge structural steel to withstand severe static loads, dynamic line vibration, thermal expansion movement, and overhead pipe suspensions.
Pre-slotted channels, spring nuts, cantilever arms, and post bases allow rapid field adjustment and modular extension without site welding or special tooling.
Multi-tier overhead pipe suspensions in chemical, pharmaceutical & heavy manufacturing facilities.
Insulated chilled water pipe supports with acoustic EPDM rubber lining for vibration dampening.
High-rise residential and commercial vertical riser pipe clamping and anchoring frames.
Heavy-duty beam clamps and threaded rod hangers certified for commercial fire safety lines.
Strut channel trapeze hangers for plant compressed air headers and drop-line tool manifolds.
Modular strut channel framing for heavy electrical cable tray runs and conduit banks.
Heavy-duty structural steel flange mounting clamp.
HDG / Zinc
Self-holding threaded strut channel locking nut.
SS316 / HDG
Cold-formed 41x41mm structural framing channel.
Pre-Galv / HDG
Heavy welded base plate wall mounting bracket.
Powder Coated

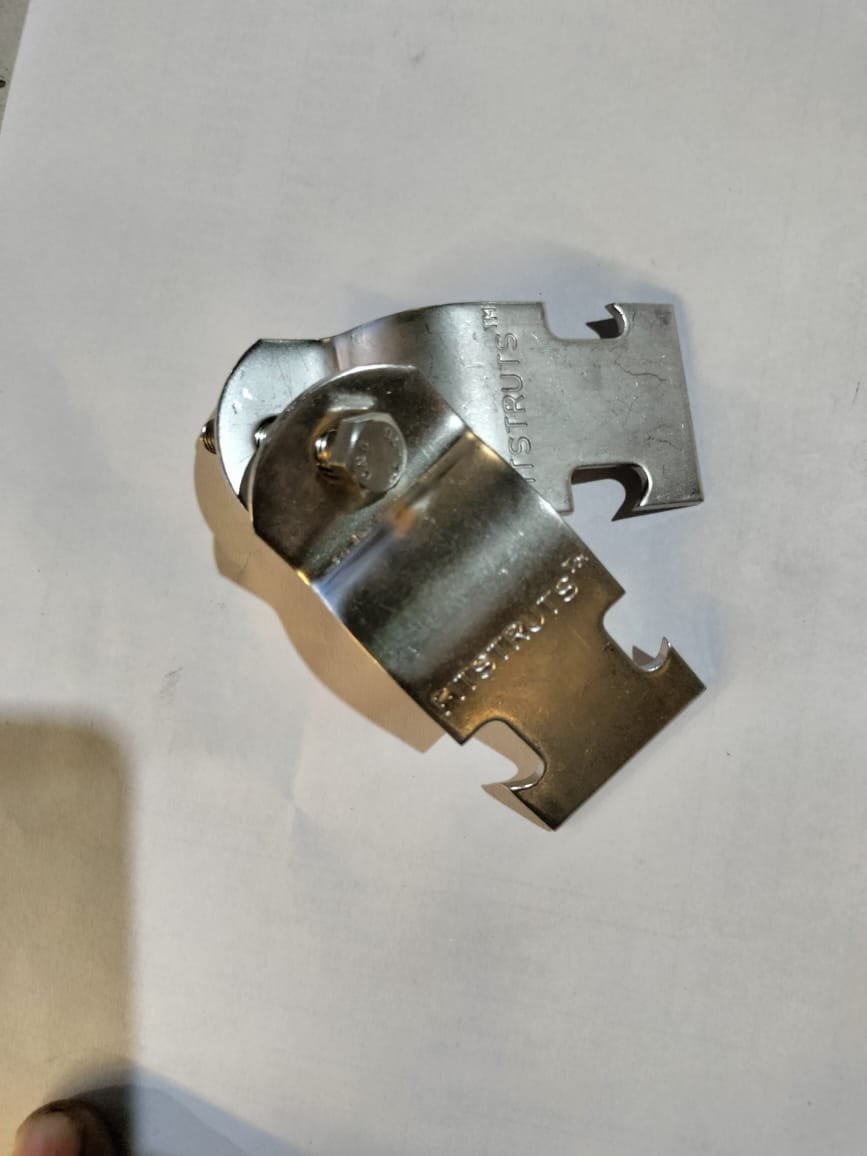

Rubber-lined vibration isolation pipe clamp.
Rubber Lined
Custom structural weldment fitting plate.
Custom Fabricated
Heavy 6mm base plate for channel posts.
Single / Double
M6 to M24 high-tensile threaded stud rods.
Grade 8.8 Steel
